Tongsheng TSDZ8 Medium Drive Motor Firmware Update Using J-Link JLink v9 Emulator

/ Uncategorized / By

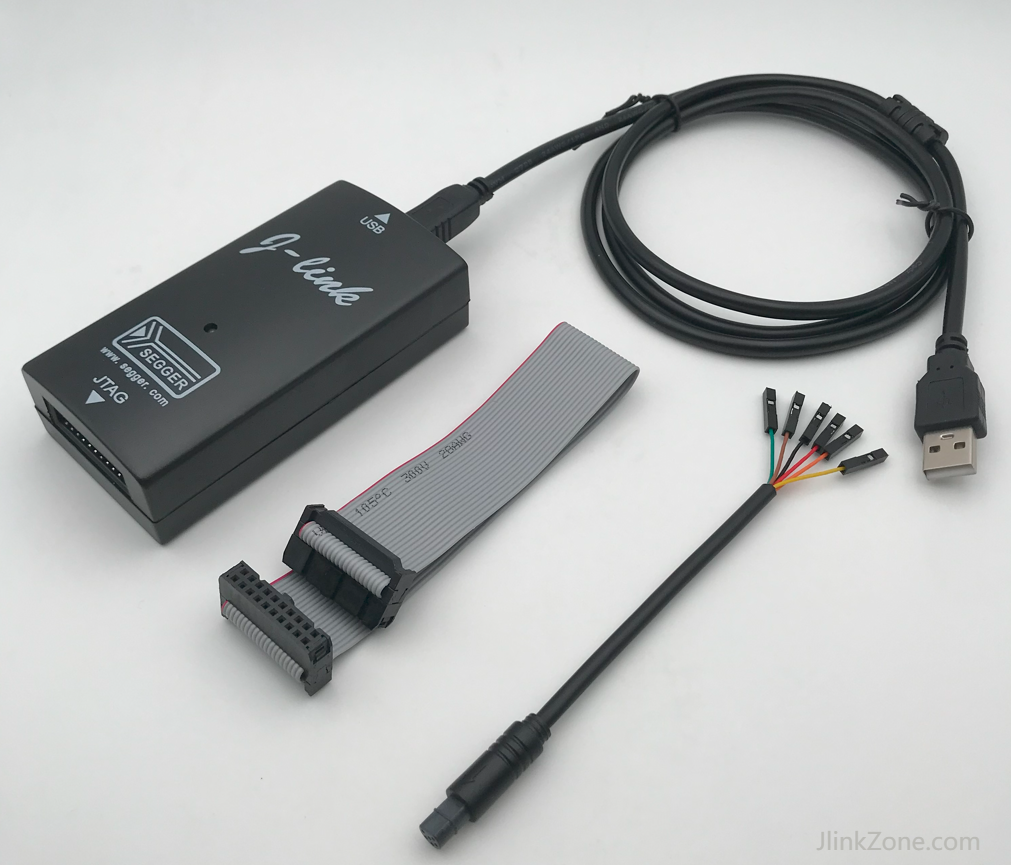

1. Take one set of TSDZ8 Programming Kit from:

For Tongsheng TSDZ TSDZ8 Speed Sensor Extension Cable 6 Pin Wire J-Link v9 Jlink v9 Programing Electric Bike Accessories STM32 – JlinkZone

or

For Tongsheng TSDZ TSDZ8 Speed Sensor Extension Cable 6 Pin Wire J-Link v9 Jlink v9 Programing Electric Bike Accessories STM32 – AliExpress 34


2. Disconnect the battery power supply of the motor.
3. Download the Jlink Software:

          JLink_Windows_V850_x86_64

4. Install the Jlink Software.

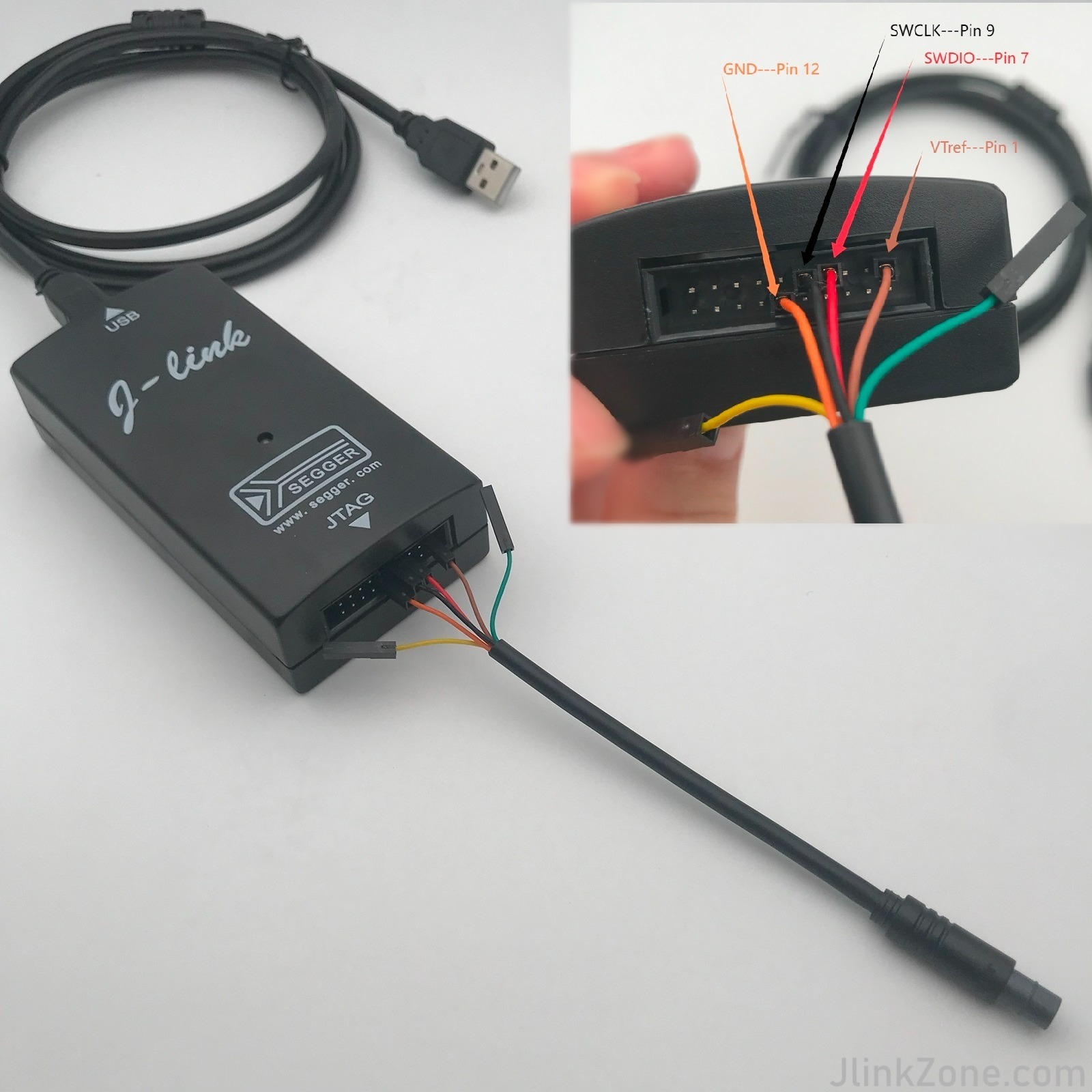

5. Connect the programming cable to the Jlink v9 Emulator.


6. Connect the speed sensor 6pin male plug of the motor to the 6pin female plug of the cable.
7. Connect the Jlink v9 to the computer with USB cable.
8. Download the project file: TSDZ8 Project file

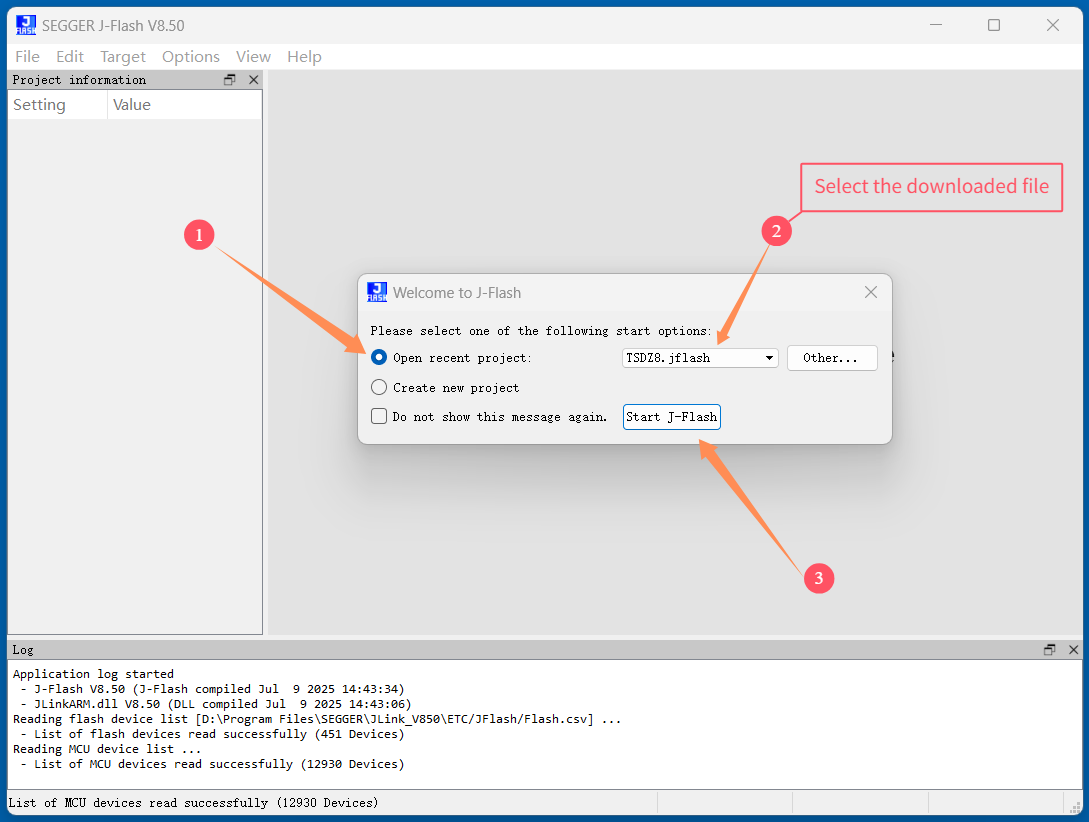

9. Run J-Flash.exe and open the project file.

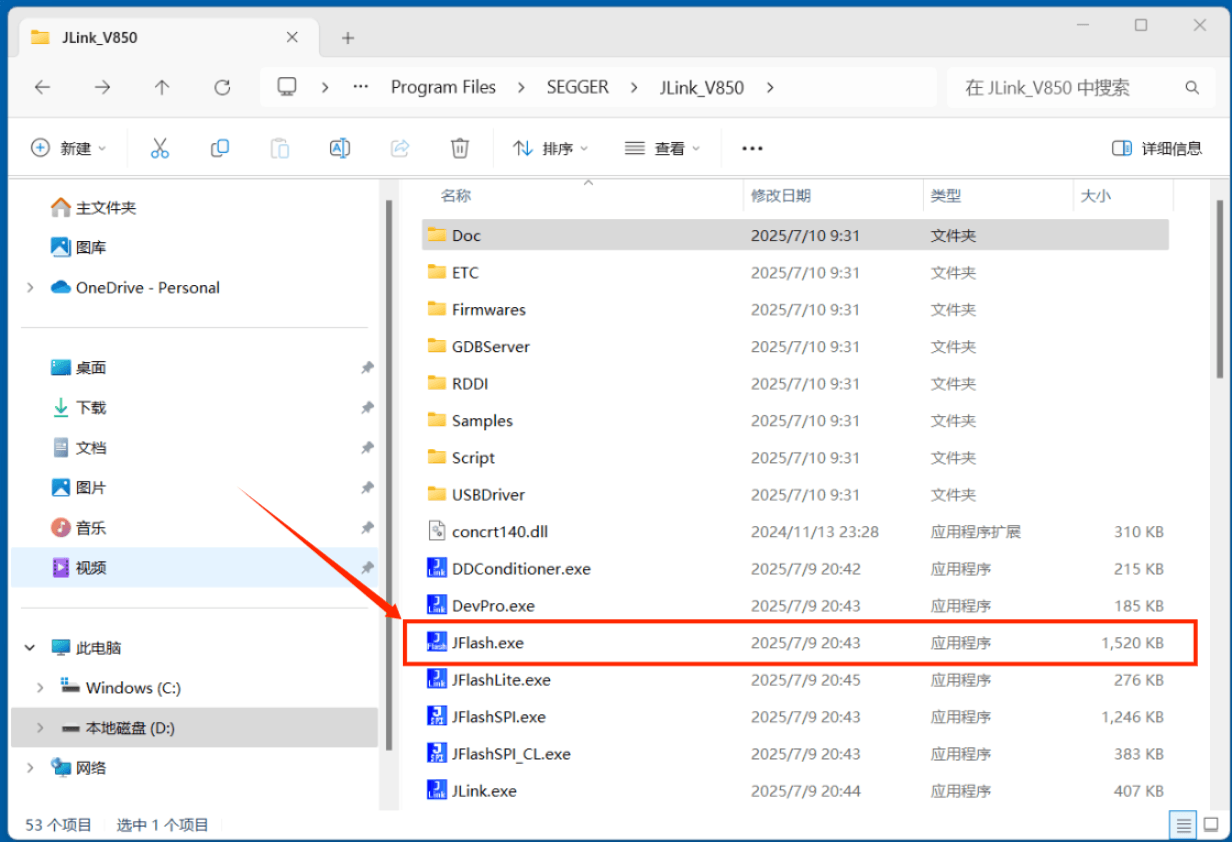

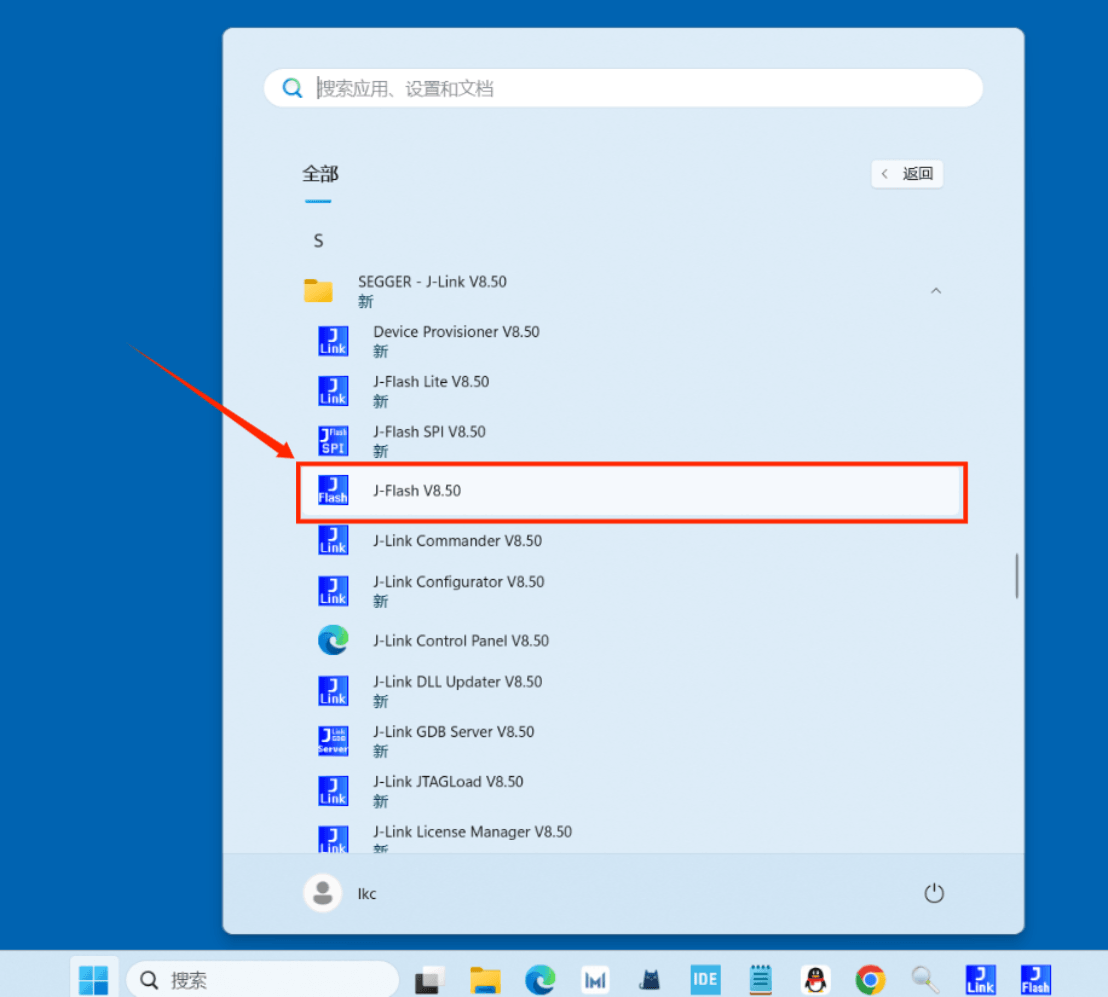

From the program installation folder (JFlash.exe) or start menu (J-Flash V8.50)  to run J-Flash.exe

Or

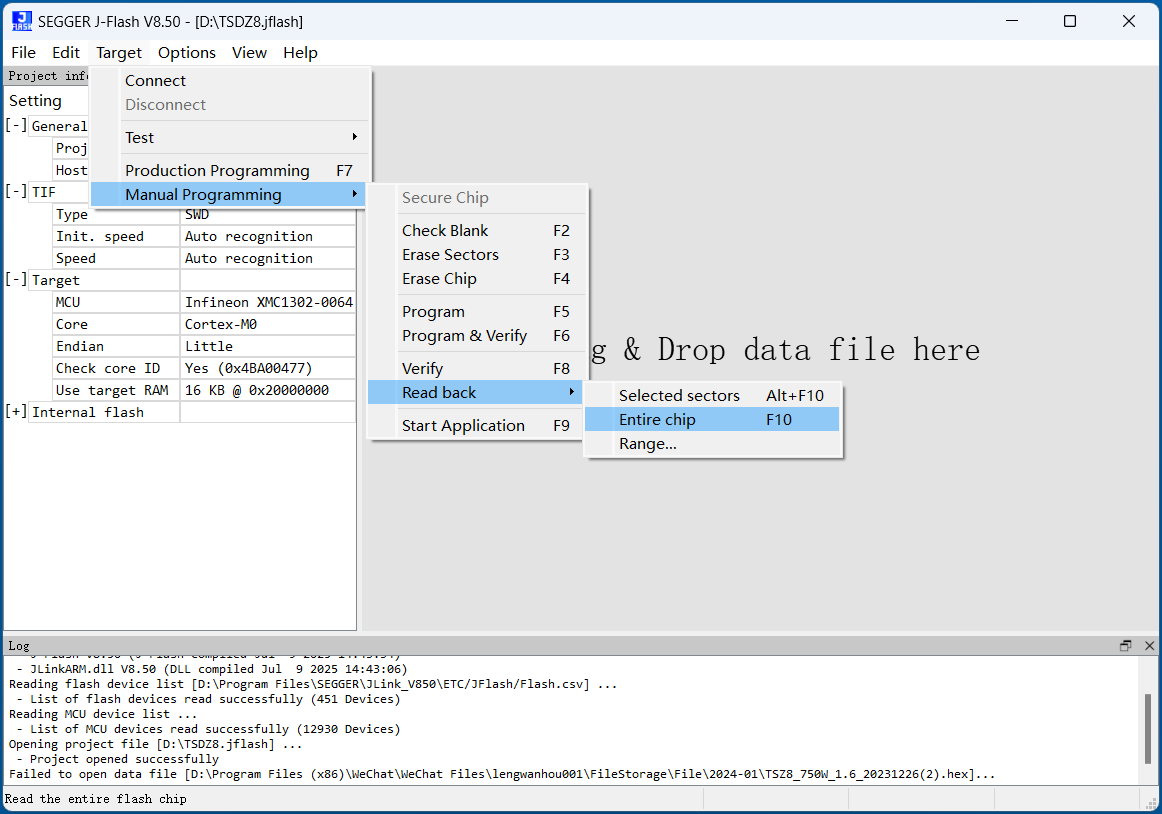

10. If you want to back up the current firmware. You need to read back first: Target-Manual Programming-Read back-Entire Chip.

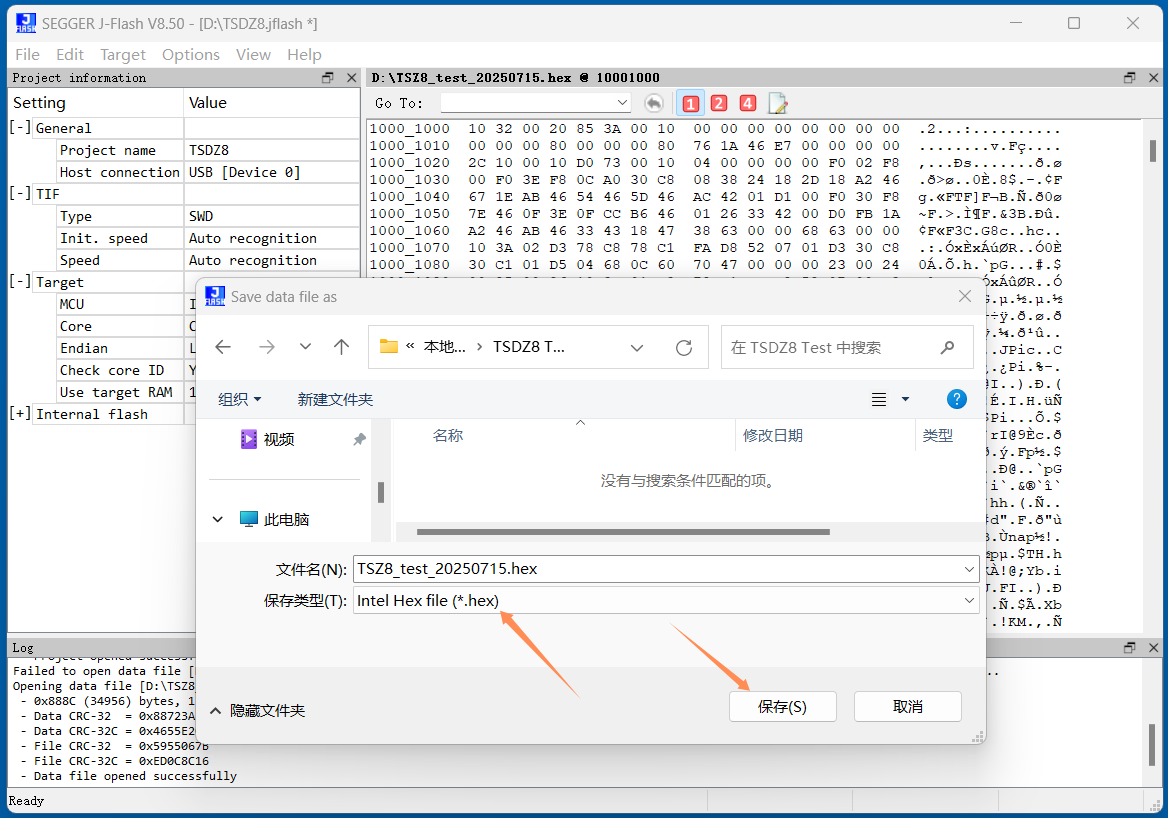

11. Save the original firmware file in the HEX format: File-Save data files as

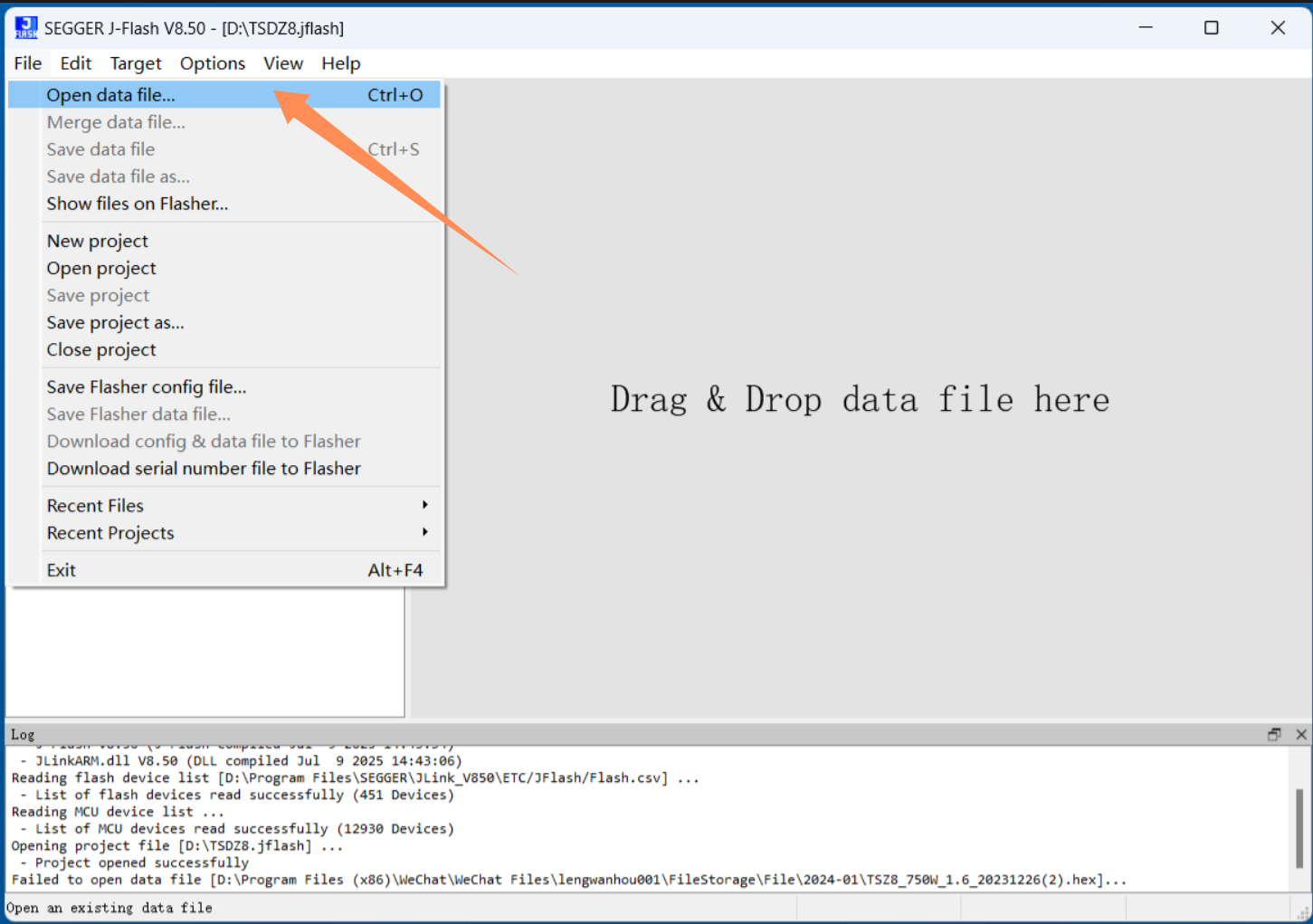

12. Open the HEX firmware file that you want to Flash: File-Open data file

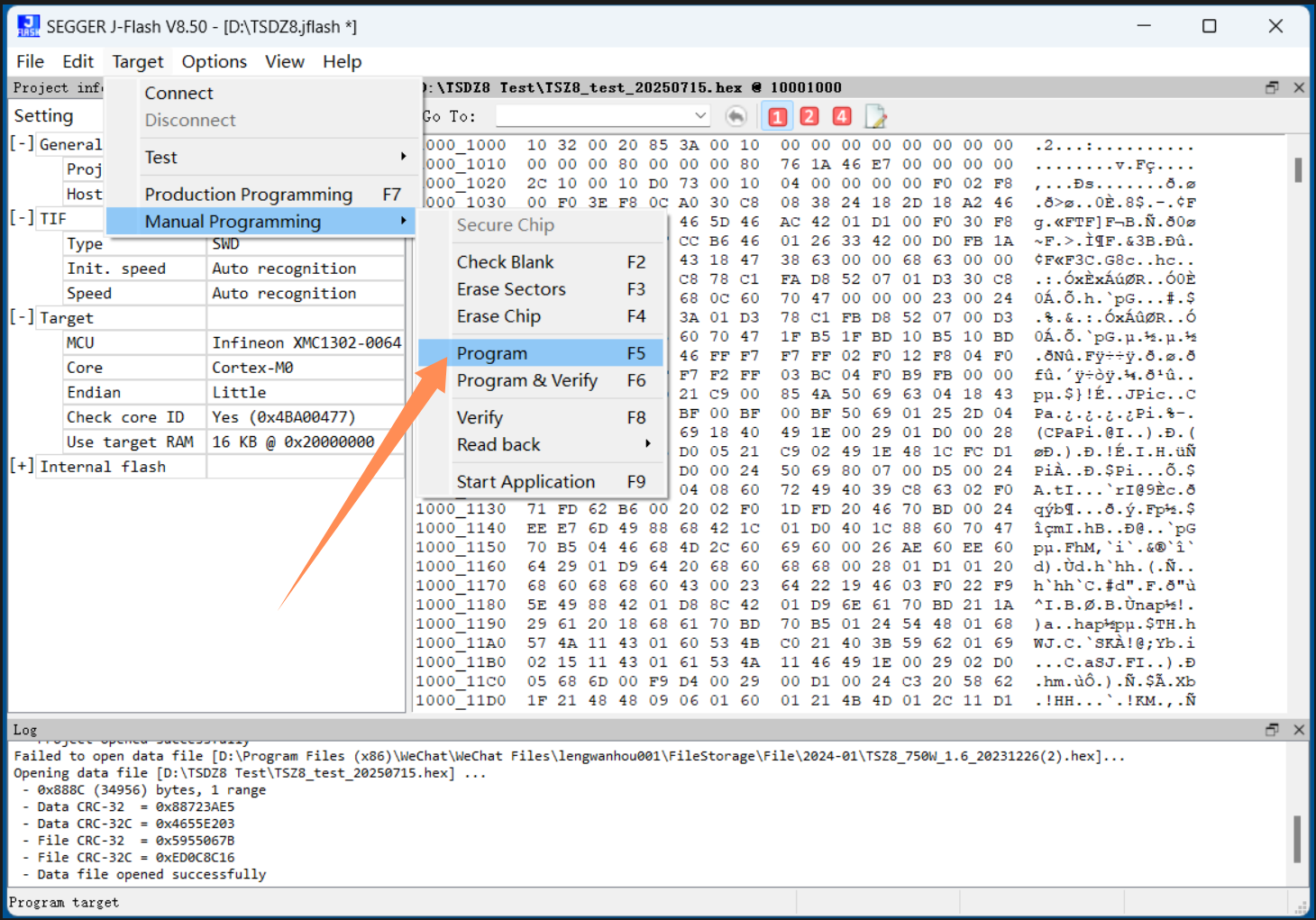

13. Flash the controller of motor with the HEX firmware file: Target-Manual Programming-Program
